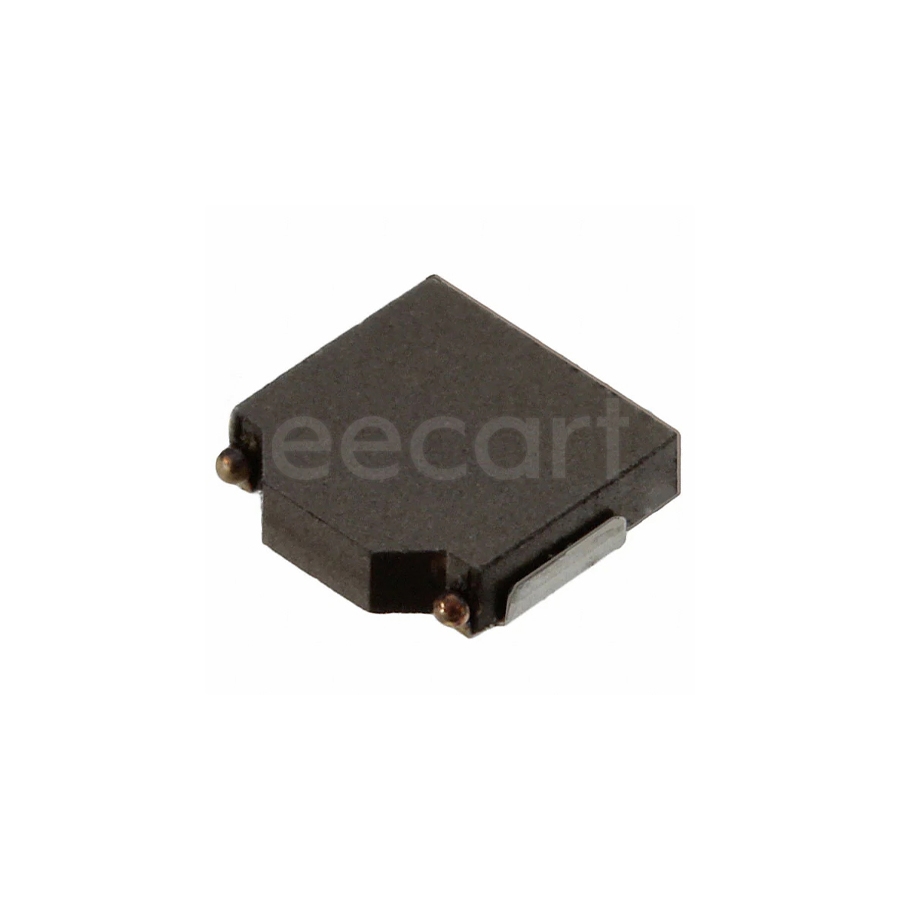

SPM4012T-2R2M
Manufacturer:
TDK Corporation
Mfr.Part #:
SPM4012T-2R2M
Datasheet:
Description:
Fixed Inductors 4.40mmL×4.10mmW×1.20mmH SMD/SMT 2.2 µH 20 % 2.9 A 95 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 20 % |
| Height - Seated (Max) | 1.2 mm |
| Length | 4.3942 mm |
| Width | 4.0894 mm |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Composition(Kit Type) | Wirewound |
| Height | 1.2 mm |
| Depth | 4.1 mm |
| REACH SVHC | No SVHC |
| Current Rating | 2.9 A |
| DC Resistance (DCR) | 95 mΩ |
| Test Frequency | 100 kHz |
| Shielding | Shielded |
| Inductance | 2.2 µH |
| Core Material | Ferrite, Metal |
| RMS Current (Irms) | 2.9 A |
| inductance tolerance | 20 % |
| Max DC Current | 3.3 A |
| Saturation Current | 3.3 A |
| Schedule B | 8504500000 |
| RoHS | Compliant |
| Packaging | Reel |
| Type | Wirewound |
Stock: 9
Distributors
pcbx
pcbxUnit Price$0.77627
Ext.Price$0.77627
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.77627 | $0.77627 |
| 10 | $0.65744 | $6.57440 |
| 25 | $0.51381 | $12.84525 |
| 50 | $0.51167 | $25.58350 |
| 100 | $0.50954 | $50.95400 |
| 300 | $0.50840 | $152.52000 |
| 500 | $0.50726 | $253.63000 |
| 1000 | $0.50612 | $506.12000 |
| 3000 | $0.48784 | $1463.52000 |
| 5000 | $0.47021 | $2351.05000 |
